AB=CD — The Base Structure Behind Every Harmonic, Where You Overlay Time Symmetry on Price Symmetry

For anyone who has only measured AB=CD by price symmetry, this lays out a way to also watch the bar count where CD ends (time symmetry) and to look once more at the spot where price and time symmetry overlap. It covers why bar-time symmetry holds more cleanly in 24/7 crypto, the entry rule for the price-and-time PRZ overlap, and the fact that this base structure sits inside every harmonic.

> Even someone who has only read AB=CD by price width will start marking the PRZ differently once they also watch the bar count where CD ends.

AB=CD is the oldest base structure in harmonics. Price advances once from A to B, retraces from B to C, then advances again from C to D. The spot where CD equals AB (the same price width) or extends by a multiple of the AB width is read as the Potential Reversal Zone (PRZ). The ratios are laid out in the table below. Larry Pesavento and Scott Carney organized this structure and made it the starting point of modern harmonics.

| Leg | Ratio |

|---|---|

| BC retracement | 0.618~0.786 |

| CD extension | 1.272~1.618 |

| Symmetric CD=AB | 1.0 |

Most people use this pattern by looking at price width alone. They measure the AB width with the Fibonacci tool, draw a line at the price that sits that width away from C, and enter when price touches it. Whether CD reaches that price in five bars or fifty bars, they treat it the same. So even with the same PRZ, some spots react precisely while others pass straight through.

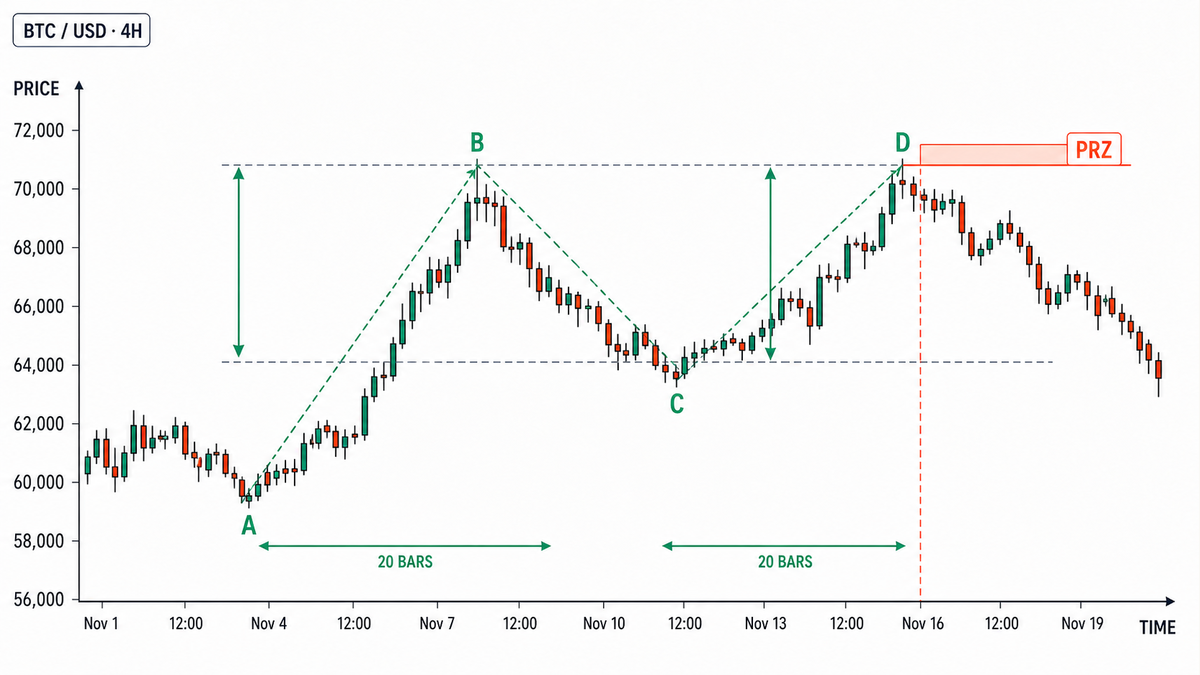

What is missing here is the time axis. AB=CD symmetry holds not only in price width but also in the number of bars elapsed. If AB formed over 18 bars, a well-matched symmetric CD has a similar price width and also finishes near 18 bars. So instead of entering the moment price touches the PRZ line, you wait for the bar where price symmetry and bar-time symmetry line up together.

With the Same PRZ, the Speed of Arrival Decides Whether It Reverses

A price line alone tells you only whether price touched it, not how fast it got there. When CD races to the PRZ in far fewer bars than AB, that leg is a stretch where the trend accelerated, so it often fails to stop at the same price and passes straight through. When CD reaches the PRZ slowly, taking about as long as AB, buying and selling pressure is in balance, and the odds of a reversal rise.

You can see this difference in BTC's daily chart in early April 2025. The leg that bled down from the April 2 high of $88,500 dropped to the April 7 low of $74,508 in just 5 bars. It was a bar-time-asymmetric plunge that reached the lower PRZ in far less time than the prior up leg. That low did not lead straight into a reversal; it gave way to a few days of base-building. Anyone who bought right at the April 7 low on the price line alone had to sit through further downside that ran to $76,240 on April 8.

In 24/7 Crypto, Bar-Time Symmetry Holds More Cleanly

Time symmetry is measured in bar counts, so it is only trustworthy when each bar holds a consistent amount of time. In stocks and indices, the session close and weekend gaps mean the time that actually passed within a single bar varies, so it is hard to treat AB's 18 bars and CD's 18 bars as the same amount of time. Crypto never closes. Eighteen BTC 4-hour bars are exactly 72 hours no matter when you count them, and 18 daily bars are 18 days, so the bar count equals the elapsed time and time symmetry holds without distortion.

That is why the approach differs by market. In stocks, you keep time symmetry as supporting context and prioritize the price PRZ and support and resistance. In crypto, you can treat bar-time symmetry as an entry condition equal to price symmetry.

CD Faster Than AB Means Acceleration; Similar Means a Reversal Signal

The ratio of CD's bar count to AB's alone lets you gauge the character of the CD leg. If CD's bar count is 0.6x or less of AB's, it did not finish as a symmetric leg but entered an acceleration stretch. Once acceleration sets in, it often blows through the 1.272 extension of the Fibonacci retracement and runs to 1.618 or 2.0. If CD's bar count falls within 0.8~1.3x of AB's, the two legs advanced at a similar pace, and this is when the price PRZ has the highest odds of acting as a real reversal zone. 0.6x and 0.8~1.3x are not fixed formulas. They are practical thresholds for sorting out the character of the CD leg, so adjust them to your instrument and timeframe.

The August 5, 2024 yen-carry-unwind plunge is the textbook case of acceleration. BTC fell from $58,161 to $49,000 in a single day, passing through several PRZs in sequence in less time than any prior down leg. It was a leg with no bar-time symmetry at all, so buying that relied on the price PRZ alone ended in a stop, and the reversal came only the next day after selling pressure calmed. When CD reaches the PRZ quickly with a bar count less than half of AB's, do not buy at that spot; wait for a re-entry after it passes through.

Only the One Cell Where Price and Time Overlap Is an Entry Candidate

Apply the operating rules in the following order.

1. Draw the price PRZ. It is the narrow band built from the 1.0 (full symmetry), 1.272, and 1.618 extensions of the AB width measured from C.

2. Draw the time PRZ. It is the bar range corresponding to 0.8~1.3x of AB's elapsed bar count measured from C.

3. Where the two ranges overlap, review an entry when price touches the PRZ band.

From the April 7, 2025 low of $74,508 to the April 25 high of $95,758, an 18-bar AB up leg formed (AB width $21,250). Then the CD up leg, rising again from the April 28 pullback (C) at $92,800, stopped over 17 bars at the May 12 high of $105,819. The 18-bar AB and 17-bar CD nearly overlapped, so time symmetry fit. But $105,819 was only a 0.61x extension of the AB width from C, so anyone watching price alone and waiting for 1.0 symmetry ($114,050) was looking at a target that would never be reached. In this case, time symmetry pinned the zone where the advance ended before price did.

• Entry: At the bar where the price PRZ band (the 1.0~1.272 extension of the AB width from C) and the time PRZ (0.8~1.3x of AB's bar count) overlap, enter on the PRZ band. Split evenly across three zones — the upper 1/3, the middle 1/3, and the lower 1/3 of the band.
• Stop: A close beyond the PRZ band, 1.5% past the 1.272 extension of the AB width from C.
• Invalidation: If CD reaches the PRZ at 0.6x or less of AB's bar count, cancel the entry (an acceleration leg). After entry, if no reversal appears past the upper edge of the time PRZ (1.3x of AB's bar count) by the time it reaches 1.5x, exit.
• Taking profit / management: The first target is the price retraced by 0.382 of the AB width from the PRZ entry price; the second is the C price. If the reward-to-risk on the first target versus the stop-to-PRZ distance is under 1:2, hold off on the entry.

This Structure Sits Inside Every Harmonic

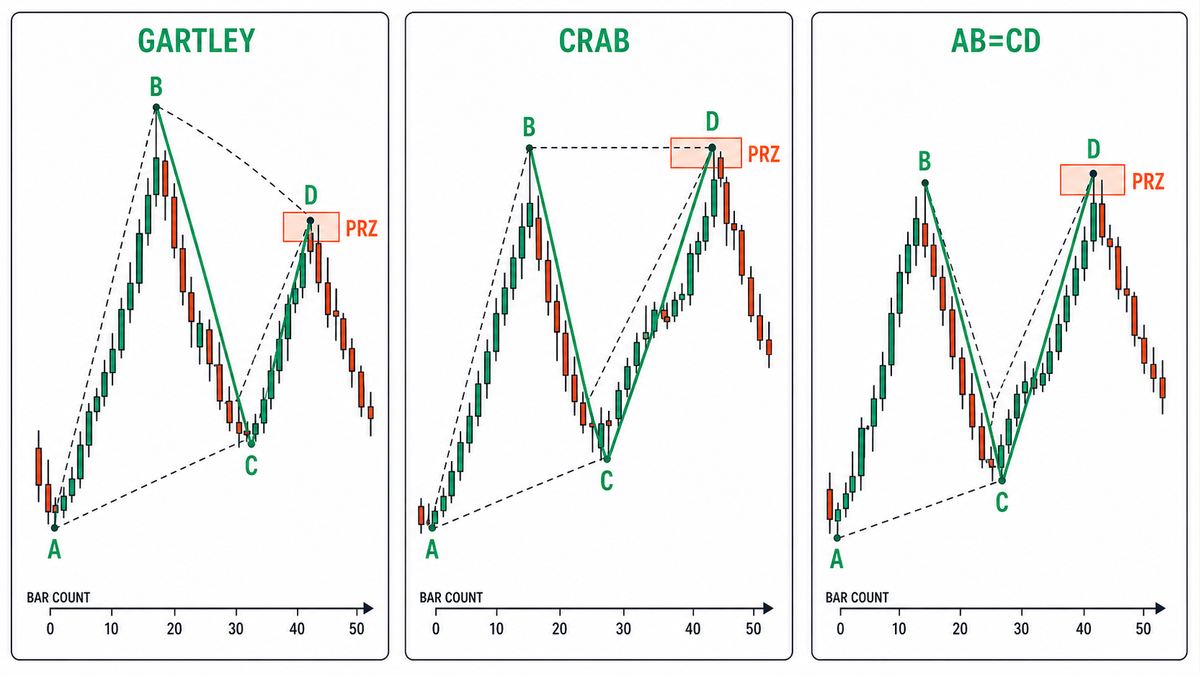

The core reason to learn AB=CD on its own is that the Gartley, Bat, Butterfly, and Crab all contain this structure inside them. In the five-point XABCD pattern, the BCD portion is itself an AB=CD. In the Gartley, the AB=CD sits at the 0.786 retracement; in the Crab, at the 1.618 extension. So when you look at a harmonic PRZ, memorizing the price-ratio table alone misses the point. Even where several harmonics' D points overlap — as near the March 2024 high of $73,777 — if the internal AB=CD has entered an acceleration stretch, that PRZ gets passed through.

Apply the same confirmation checklist right before every harmonic entry.

• [ ] Do the price PRZ band and the time PRZ range actually overlap
• [ ] Is CD's bar count greater than 0.6x of AB's (ruling out an acceleration leg)
• [ ] Has the BC retracement landed within the 0.618~0.786 range
• [ ] Does the bar that reaches the PRZ also show divergence or signs of declining volume
• [ ] Is the reward-to-risk to the first target versus the stop-to-PRZ distance 1:2 or better
