Aroon Oscillator — Time-Based Trend Strength

Track the age of a trend by measuring how recently new highs or lows were made, and use that timing to judge trend fatigue.

Aroon measures how recently the latest high or low occurred. How far price has moved is left out of the calculation. The same 5% rally means different things if the chart just made a fresh high versus if it has gone 10 bars without one.

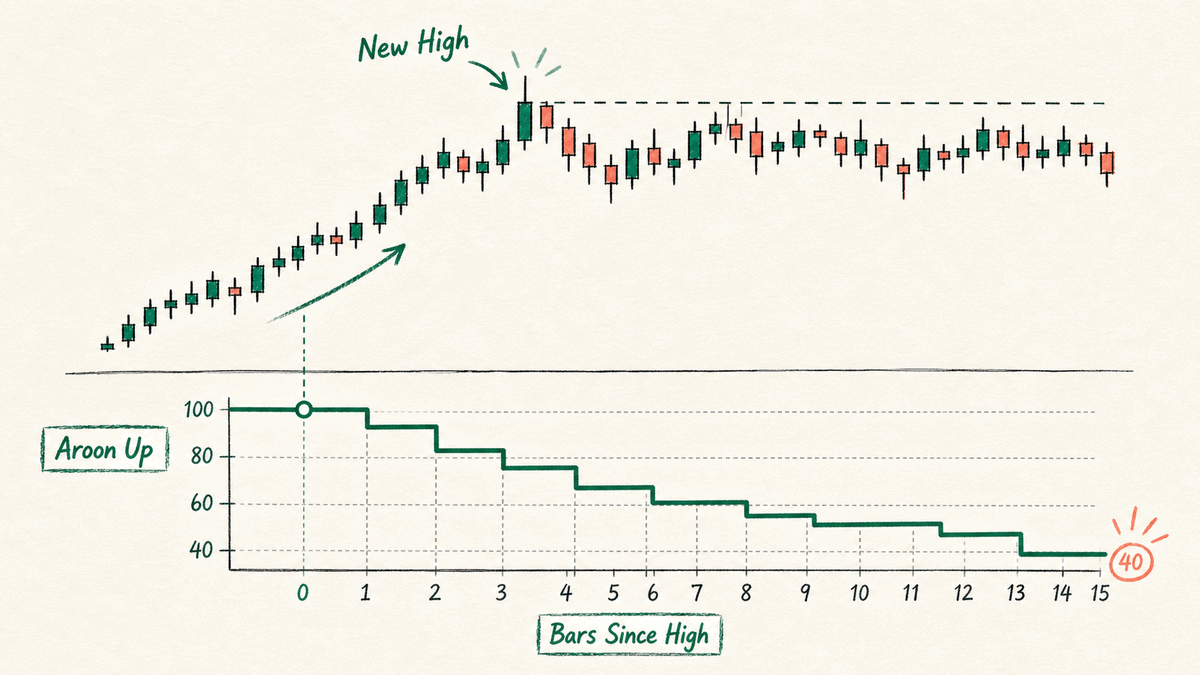

When Aroon Up falls from 100 to 80, 60, and 40, it means new highs are becoming less frequent. Price may still look elevated, but the trend may be losing its ability to print fresh highs.

The key input is time. When new highs become less frequent, avoid chasing new longs. When new lows become less frequent, avoid chasing new shorts. Aroon warns before price rolls over by showing that the intervals between new highs or new lows are widening.

The Aroon Oscillator combines those two lines into one value. It is defined as Aroon Oscillator = Aroon Up − Aroon Down, with a range from −100 to +100. Above the zero line, the latest high is more recent than the latest low, which favors the upside. Below the zero line, the opposite is true, which favors the downside. A cross above zero signals a shift toward upside dominance; a cross below zero signals a shift toward downside dominance. The oscillator compresses the relative strength of Up and Down into one line. The Up and Down behavior discussed below carries directly into the oscillator’s sign and magnitude.

Every Bar Since the Latest High Carries Information

An uptrend stays alive by making new highs consistently. Once that process stops, the trend has already weakened before price starts falling. The formula is Aroon Up = ((N − bars since highest high) / N) × 100. If N=25, the value falls by 4 for every bar that passes after the highest high because 100/25 = 4. So when Aroon Up drops from 100 to 96, 92, and 88, it means the latest high is now 1, 2, and 3 bars away.

Price can still be elevated. It may move sideways near the prior high or trade slightly above the previous range. But the buying pressure needed to make a new high has disappeared, and that shift builds before it shows up in price. Price often starts falling after Aroon Up has already dropped below 40.

After BNB made a new high in the $700s in June 2024, daily Aroon Up started at 100 and steadily fell to low levels. During the same period, price stayed in a $580-$620 range, but the drop below 40 was the signal that the trend was already exhausted. Price later fell to $480. It was an earlier warning than RSI divergence or a shrinking MACD histogram.

This is where Aroon differs from other momentum indicators. Because it measures time, the value keeps moving even while price is moving sideways. Tools based on the rate of price change tend to flatten during consolidation.

Put simply, Aroon asks, “How many bars has it been since the last new high?” Even if price is still near the highs, buying pressure is already cooling if five bars have passed without a fresh high. In a downtrend, when new lows stop appearing, stop chasing shorts and look first for rebound risk.

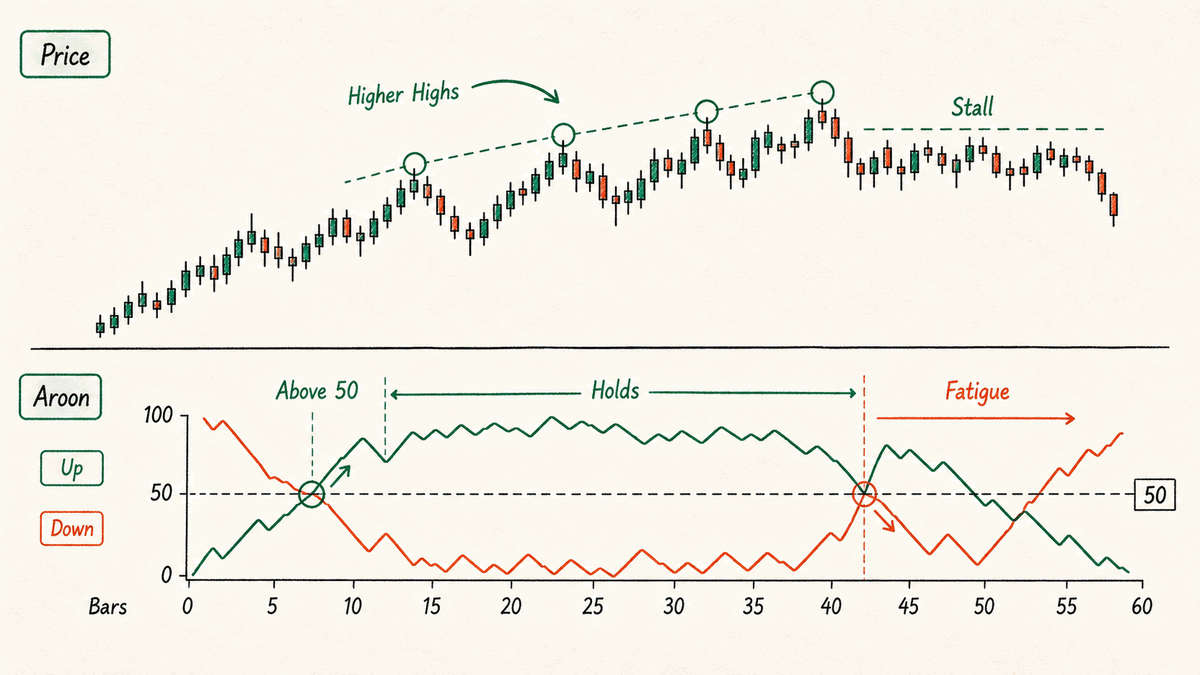

The Paradox: Up and Down Both Above 80 Can Mark the Start of a Range

One of the most confusing Aroon patterns is when Up and Down are both above 80. Normally, Up 80 means a new high was recent, while Down 80 means a new low was recent. Seeing both at the same time can look contradictory.

Statistically, it is clear. If both the highest high and lowest low occurred recently within the N-bar window, volatility has expanded enough to print both extremes. This should be read as the end of a trend, or the start of a range after a major volatility burst. It should not be treated as a new-trend signal.

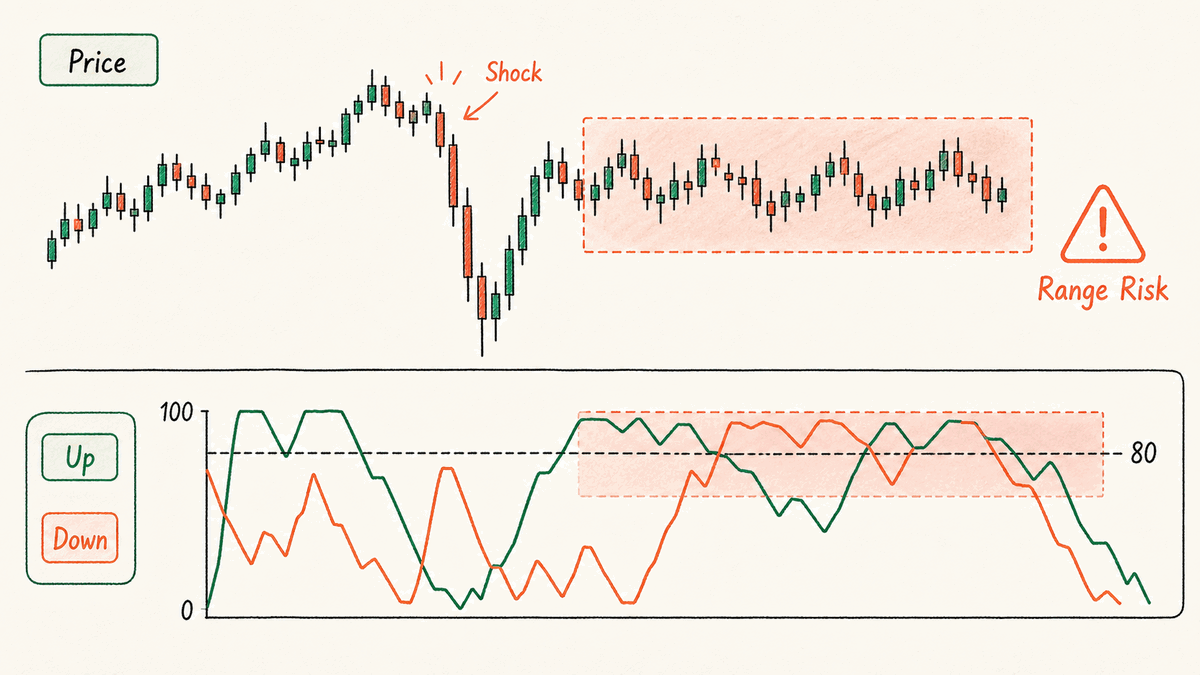

After BTC’s sharp overnight selloff on August 5, 2024, daily Aroon Up and Down both stayed above 80 for several days. That happened because price had printed both a $56,000 low and a $62,000 high within the prior few days. This was a sign that the market was unstable, not a clean trend signal. Using a simple Aroon entry in that state would repeatedly trigger entries in alternating directions.

The same logic applies in the opposite condition. When Up and Down are both below 50, neither side is making fresh extremes. That points to a quiet range. It reaches the same conclusion as an ADX reading below 20, often a little earlier.

What the 50-Line Cross Means

When Aroon Up crosses above 50, it means the latest high occurred within the most recent half of the N-bar window. This is often described as a trend-start or trend-resumption signal, but on its own it produces many false signals.

The real meaning of the 50 line depends on how long the move lasts. The number of bars Aroon Up stays above 50 matters. If it falls back below 50 after one or two bars, the move only made one new high and stopped. If it holds above 50 for five or more bars, it means new highs are being made repeatedly.

The same 50 line becomes a weakening threshold in the opposite direction. When Aroon Up drops below 50, the latest high has moved into the older half of the N-bar window. The trend is starting to age. That becomes a decision point for exiting or reducing size.

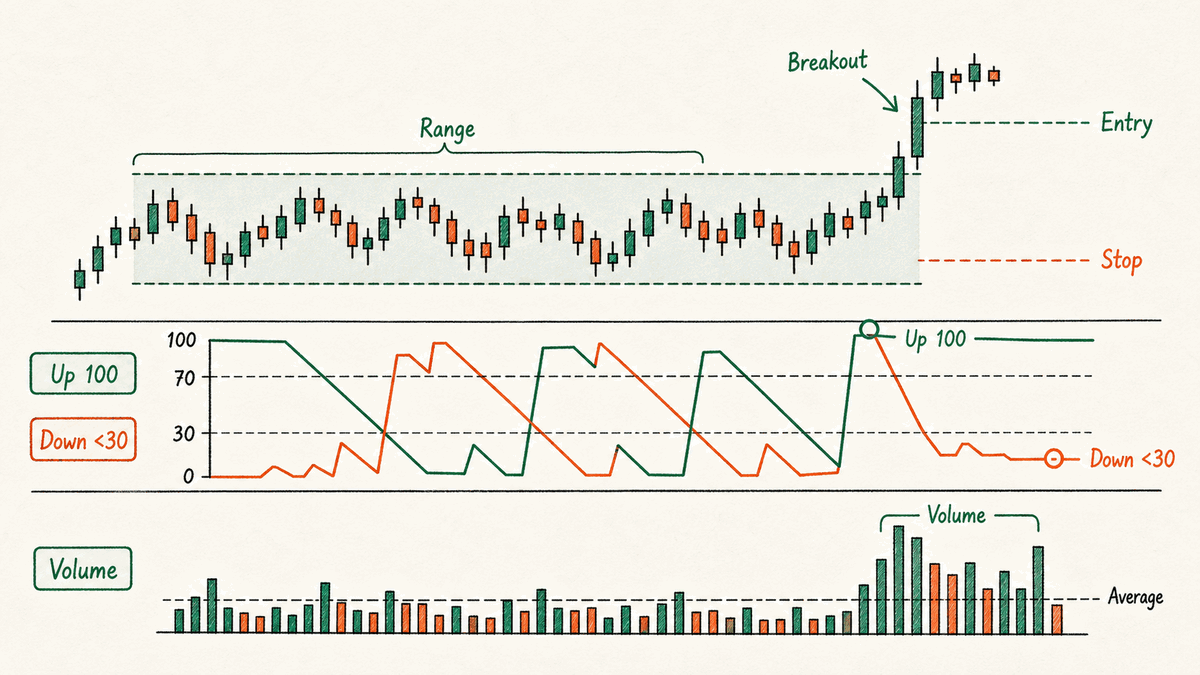

New-Trend Entry: Up 100 With Volume Confirmation

The cleanest Aroon entry setup appears when price breaks out of a range. The signal bar is the first bar in N bars to make a new high, causing Aroon Up to reach 100.

> AVAX trades sideways for one month on the daily chart in a $30-$38 range.

> Price closes above the range high at $38.

> Aroon Up reaches 100, while Aroon Down falls below 30.

> Volume on the same bar is at least 1.5 times the average of the prior 20 bars.

> Enter long at that bar’s close. Set the stop below the range midpoint at $34.

> If Aroon Up falls below 50 within the next five bars, treat the trend start as failed and exit.

The key is that all three conditions line up on the same bar. Aroon Up 100 means price made a new high. Aroon Down below 30 means the latest low has moved into the older part of the N-bar window. The volume surge means new capital has entered. If any one of the three is missing, the probability of a false breakout rises materially.

Volume confirmation matters because Aroon does not measure how far price has moved. Even a 0.5% move can push Aroon Up to 100 if it is the highest high within the N-bar window. Aroon Up can jump on a minor, low-quality move. Without filtering that jump through volume, more than half of the entry signals will be close to noise.

The same setup can be inverted for short entries when price breaks below the bottom of a range.

Match N to Your Holding Period

N=25 is calibrated to roughly one month of U.S. stock trading days. The adjustment rule is simple: match N to your average holding period.

• N=25 (default): Fits medium-term daily swings with a 1-4 week holding period, and measures trend fatigue on a one-month basis.
• N=14: Fits short-term daily swings or 4-hour charts. It catches trend changes earlier, but produces more false signals.
• N=50: Fits longer-term daily trends and captures larger trend structure over roughly 2-3 months.

If your average holding period is two weeks and you use N=50, the signal refreshes too slowly and you miss entries. If your holding period is one month and you use N=14, short-term volatility will keep forcing false exits. A practical rule is to keep your average holding period between roughly half of N and N bars.

Crypto trades 24 hours a day, so N should be increased. N=25 on a SPY daily chart represents about one month of trading days, but N=25 on a BTC daily chart is about 25 calendar days with no weekends off, which is shorter than one U.S. stock-market month. If you recalculate one month using the asset’s trading calendar, BTC at around N=30 is comparable to SPY at N=25.

Three Traps Created by the Time Dimension

• False new highs that ignore magnitude: Aroon only measures timing. It does not measure how much price moved, so even a 0.5% move can send the value to 100 if it is the highest high inside the N-bar window. Without confirmation from volume or ATR range, false signals are common.
• The time needed to confirm highs and lows: Aroon reaches 100 only after a new high is confirmed. The signal does not appear until the trend-start bar has closed, so it is one step slower than tools such as EMA pullbacks or a shrinking MACD histogram. Accept that delay and use the first pullback after the trend starts as the more practical entry.
• Entering on Up/Down crosses alone: If the two lines cross below 50, the move is closer to range noise. A meaningful cross occurs when Up is above 70 and Down is below 30. Other crosses are not a setup.

Two Ways to Confirm the Time Signal With Price

Aroon setups become stronger when two forms of confirmation converge.

• Volume: First check whether Aroon Up 100 appears with a volume surge. Volume offsets Aroon’s weakness: it does not measure the size of the price move. If volume is only normal, the new high has less meaning, so entry should be more conservative.
• ADX: Aroon measures trend through time; ADX measures trend strength. When both tools point to the same trend signal, confidence rises meaningfully. The strongest trend-start signal is Aroon Up above 70 together with ADX above 20. By contrast, Aroon 100 while ADX is below 20 is more likely to be a temporary move inside a range.
