OBV — Tracking Accumulation and Distribution

Use OBV’s slope inside a range to read the likely direction of the next breakout before price confirms it.

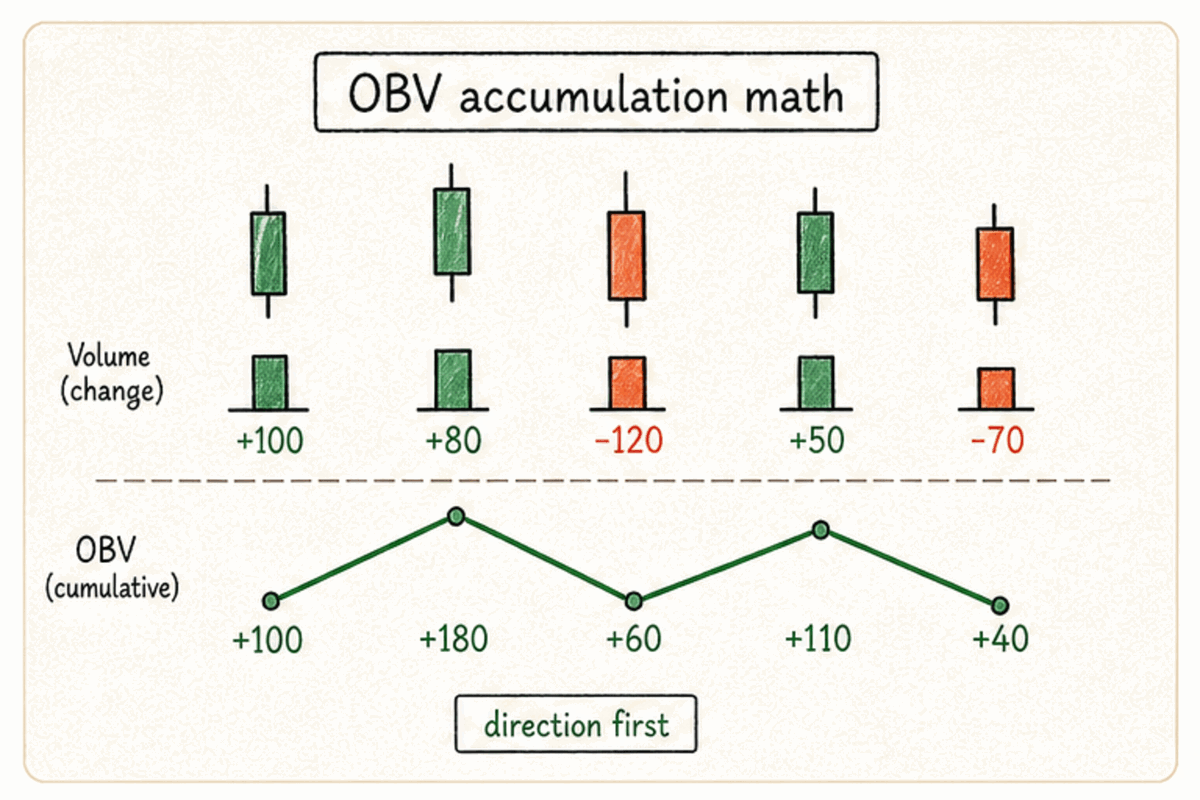

OBV is a cumulative line that adds volume when the close is higher than the previous bar and subtracts volume when the close is lower. The calculation is simple, but it is useful for seeing whether capital is accumulating on the buy side or sell side inside a trading range.

Even if price is stuck in the same range, a rising OBV increases the odds of accumulation. Price has not moved yet, but volume on up days is consistently larger than volume on down days. Conversely, if price is holding up while OBV slopes lower, you should suspect distribution.

If you use OBV only for divergence, you narrow the information it can give you. To judge the quality of a breakout, look at the OBV slope inside the range, whether OBV retakes its prior high just before the breakout, and whether OBV holds up when price retests the range.

OBV Shape Inside a Range — A Clear Signal of Accumulation or Distribution

At the center of the four market-cycle phases Richard Wyckoff described in the early 1900s — Accumulation -> Markup -> Distribution -> Markdown — there is almost always a trading range. Accumulation and distribution both appear as ranges, so price alone cannot distinguish them. To tell which one you are looking at, you need to see where capital is flowing inside the range, and OBV shows that flow cumulatively.

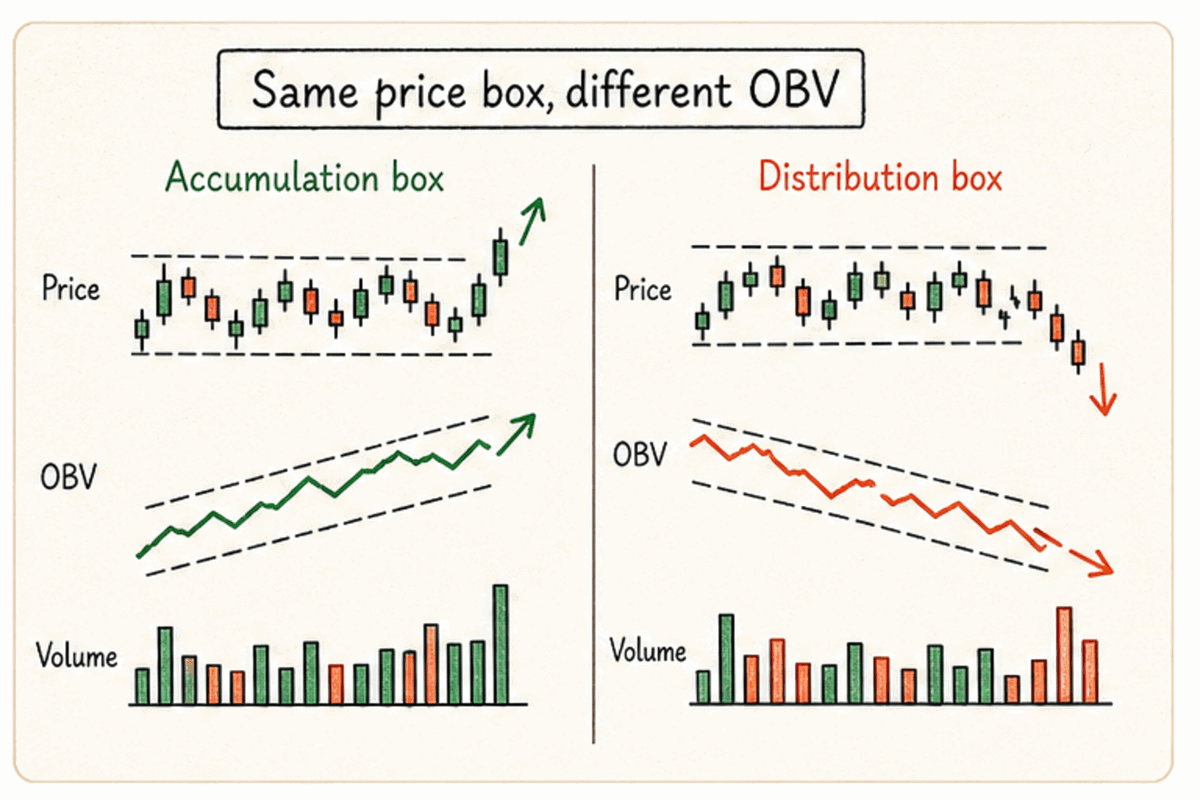

• OBV in an accumulation range: After a large decline, price enters a range, and OBV clearly trends higher while the range continues. Price is unchanged, but buying pressure is quietly building. Larger players are slowly building positions without pushing price up. That makes an upside breakout more likely.
• OBV in a distribution range: After an advance, price enters a range, and OBV clearly trends lower during the range. Larger players are supporting price while reducing inventory. That makes a downside break more likely.

When COIN (Coinbase) spent five weeks in a $200-$230 range in October 2024, OBV clearly trended higher over the same five weeks. That was a classic accumulation pattern. Price then broke above the top of the range and climbed to $350 within eight weeks. By contrast, when AMZN entered a four-week range near $230 in March 2025, OBV sloped lower inside the range. Price stayed in place, but capital was leaving, and the setup eventually led into the April correction.

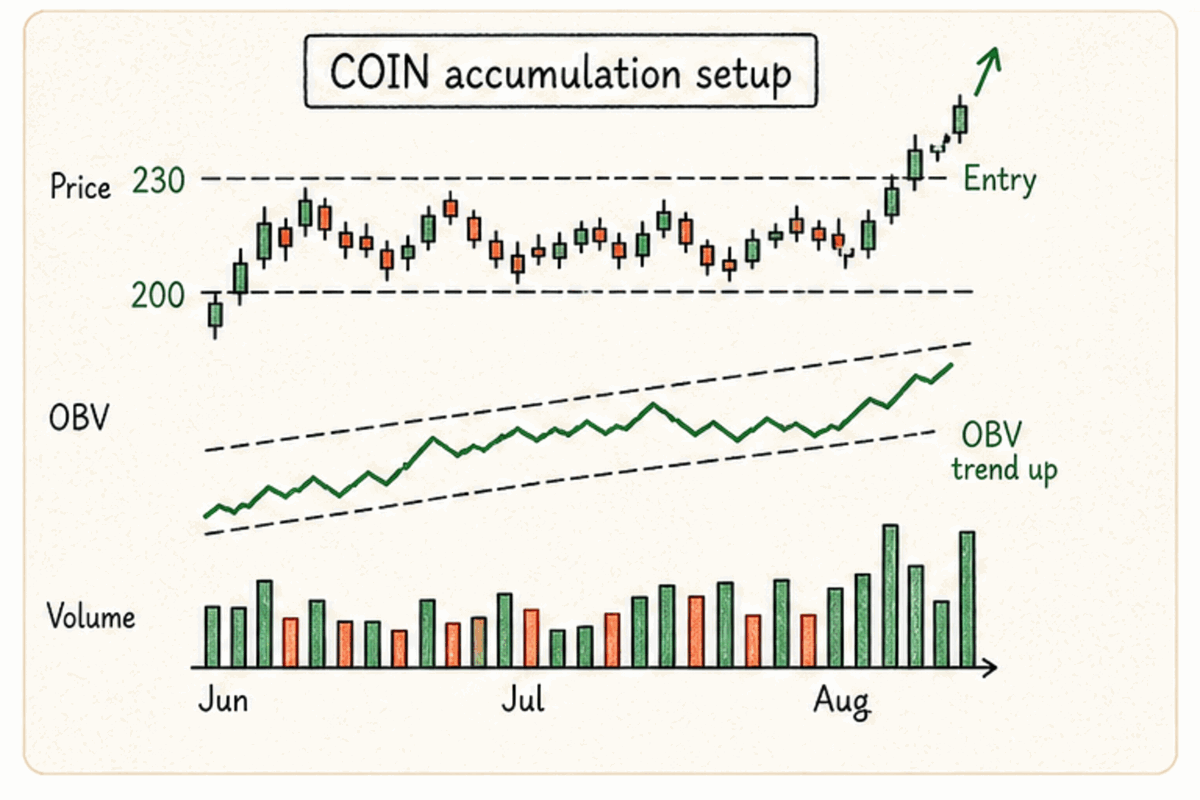

Accumulation Setup in a Range

> COIN daily candles have been moving sideways for more than four weeks in a $200-$230 range,

> OBV is clearly trending higher over the same period, with the average OBV of the prior five trading days clearly above the OBV level at the start of the range,

> and average volume on bullish candles during the range clearly exceeds average volume on bearish candles.

> Enter long at the close of the candle that breaks above the top of the range ($230) on a closing basis.

> Place the stop below the midpoint of the range ($215).

> If price falls back into the range on a closing basis after the breakout, or if OBV drops below its average inside the range, treat it as a false breakout and exit.

The key is which way OBV has been building during the range. If OBV slopes higher inside the range, buying pressure is already in place when the breakout signal appears, and false breakouts that return to the range within a few days become much less likely. If OBV is flat or falling, the breakout is more likely to be just a burst of volatility outside the range.

The short setup for a distribution range is the same logic in reverse. OBV slopes lower inside the range, and the entry comes when price closes below the bottom of the range.

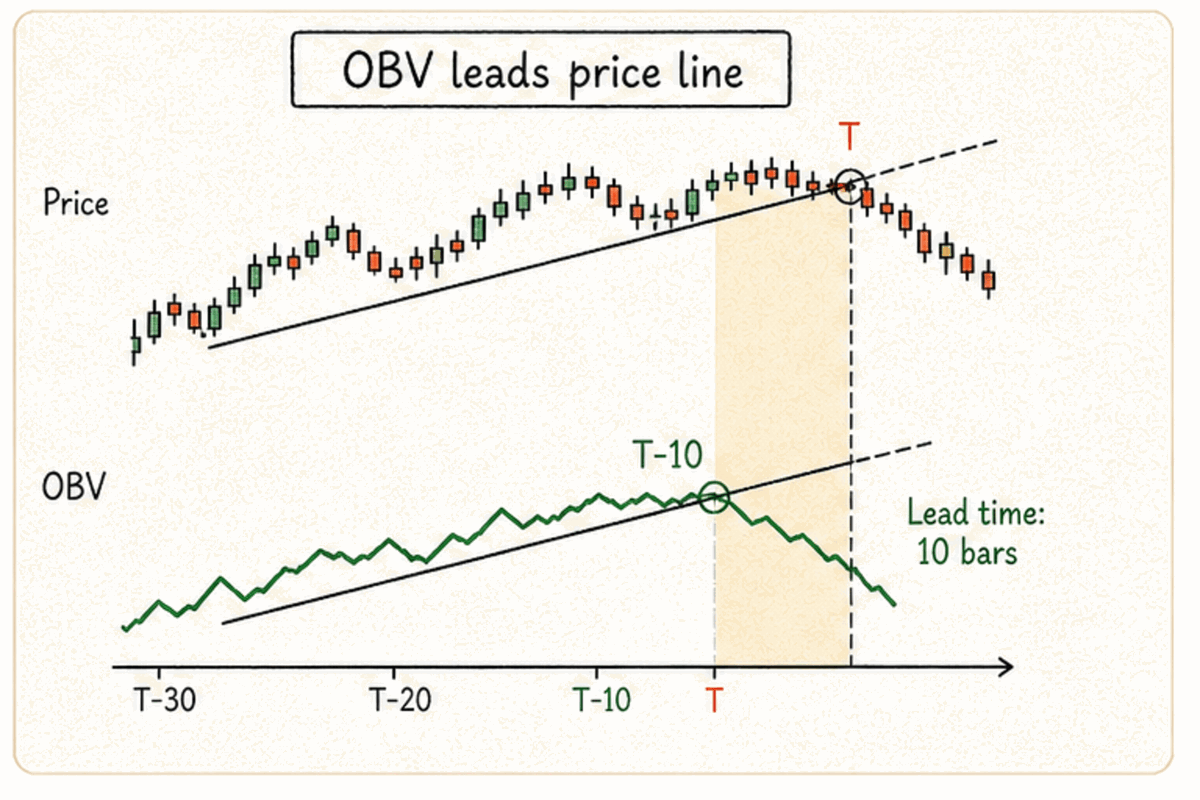

Draw Trendlines Directly on OBV

If you draw trendlines only on the price chart, you miss what OBV often signals earlier. One of Granville's most durable original uses of OBV is to draw trendlines directly inside the OBV panel. Separate from price trendlines, draw lines connecting OBV's own highs and lows.

OBV often breaks this line several days before price breaks its own trendline. Capital flow shows up first as accumulation or distribution before it is reflected in price.

While JPM was slowly rising on the daily chart in September and October 2024, its price trendline held until late October. But the trendline drawn on OBV had already broken in mid-October. Price was still above trend, but the pace of capital inflow was cooling. When price broke its own trendline in the first week of November, anyone watching OBV had already received a warning two weeks earlier.

An OBV trendline break is too noisy to use as a standalone entry trigger. Use it as a *warning signal*. When it appears, respond to the next price signal faster and more conservatively.

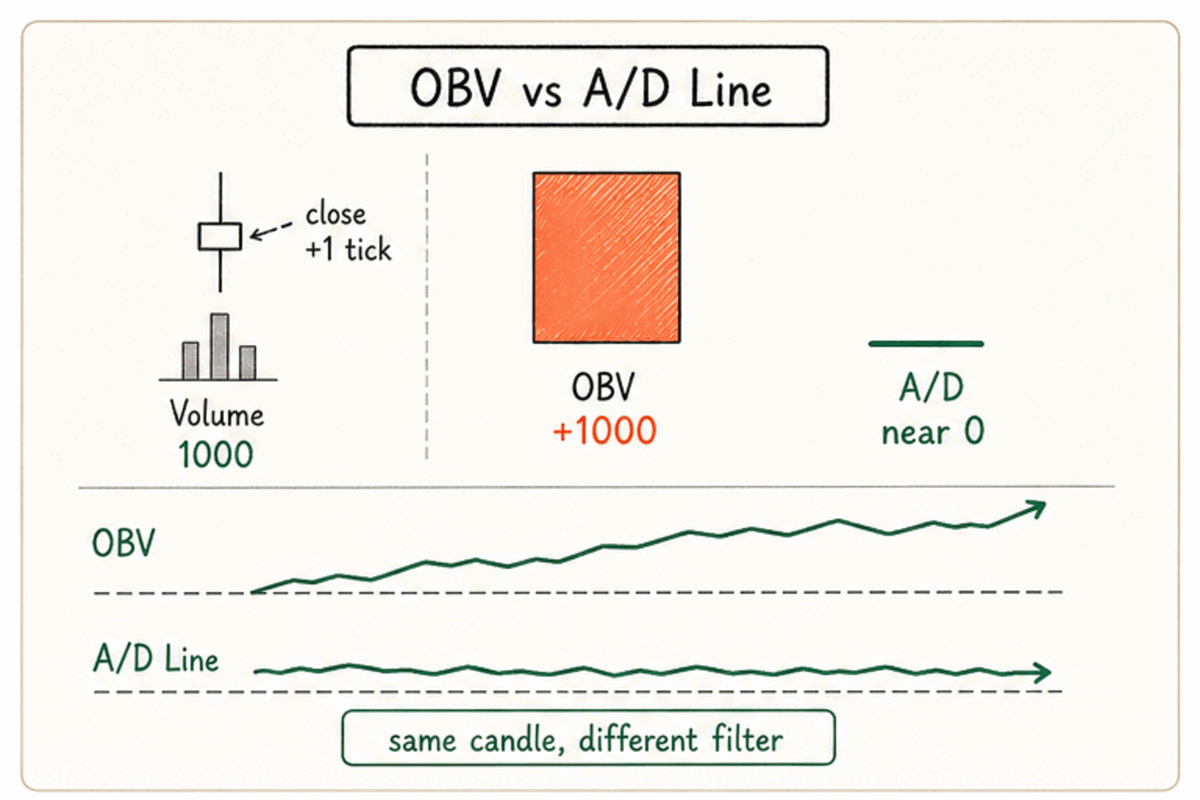

OBV and the A/D Line — Cleaner Signals Together

OBV is often compared with the Accumulation/Distribution Line (A/D Line), which Marc Chaikin formalized in the 1970s. Both are cumulative volume lines, but they use different inputs.

OBV looks only at the direction of the close and assigns the entire bar's volume to one side. The A/D Line, by contrast, allocates volume based on where the close sits within the bar's high-low range. If the close is near the middle of the bar, the contribution is close to 0. If it closes near the high, it is close to +volume. If it closes near the low, it is close to -volume.

That difference filters noise. A doji that closes one tick above the previous close but finishes near the middle of its own range adds the entire bar's volume as buying volume in OBV, while the A/D Line adds almost nothing. So when both lines trend higher together, the accumulation read is more reliable. If only one line rises while the other is flat, the signal carries less weight.

Plotting both lines helps filter a specific false signal: OBV can slope higher because each bar closes just slightly above the prior close, even though buying and selling are nearly balanced within each bar. In that case, the A/D Line will stay almost flat. OBV alone may look like accumulation, but the two lines together reveal it as fake accumulation.

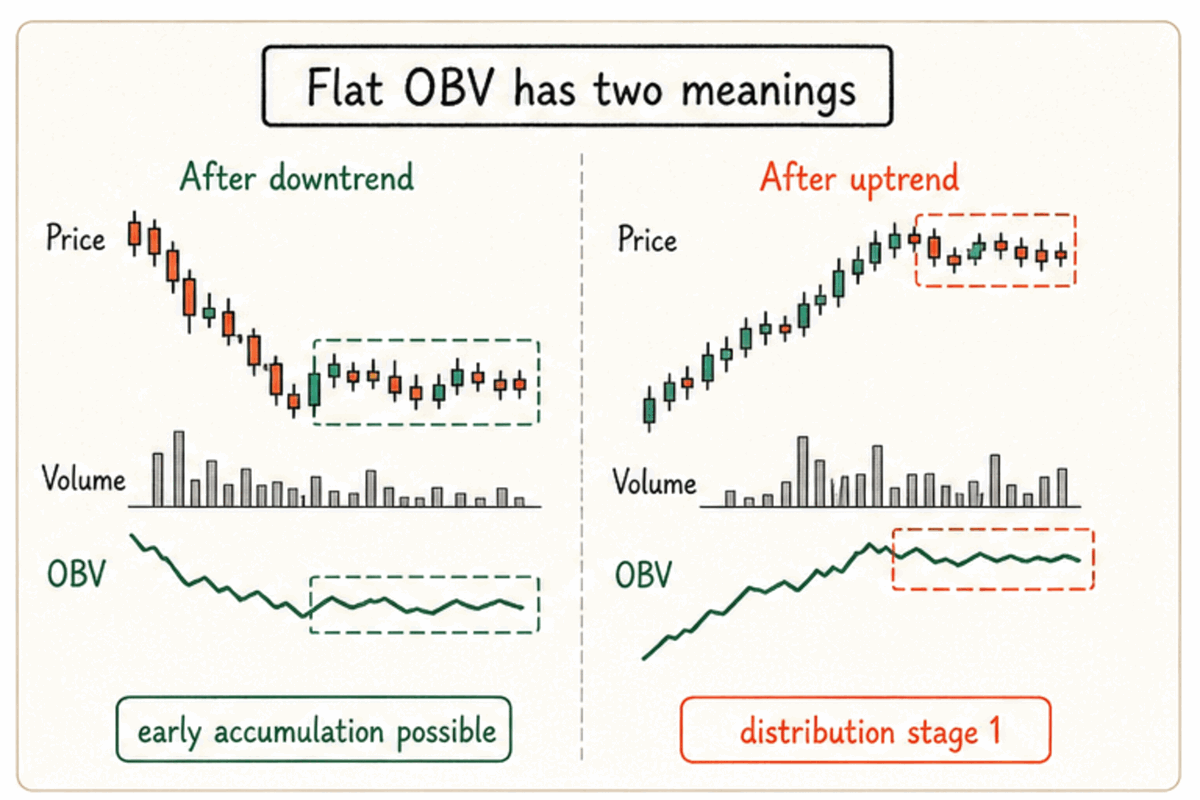

Flat OBV Is the Most Dangerous Setup

The OBV shape traders most often miss is the flat one, where it neither rises nor falls. Price is oscillating, yet OBV barely changes.

This is often real evidence that distribution is underway. It means buying and selling are almost balanced while price swings inside the range. After an uptrend, that balance is bearish by itself. The flatness of OBV shows that real buying is no longer keeping pace with the trend.

A range with flat OBV after an uptrend often looks very similar to accumulation with rising OBV, so it is frequently misread as accumulation. The deciding factor is the prior trend. Flat OBV after a large decline can be an early sign of genuine accumulation, but flat OBV after a large advance should be treated as the first stage of distribution.

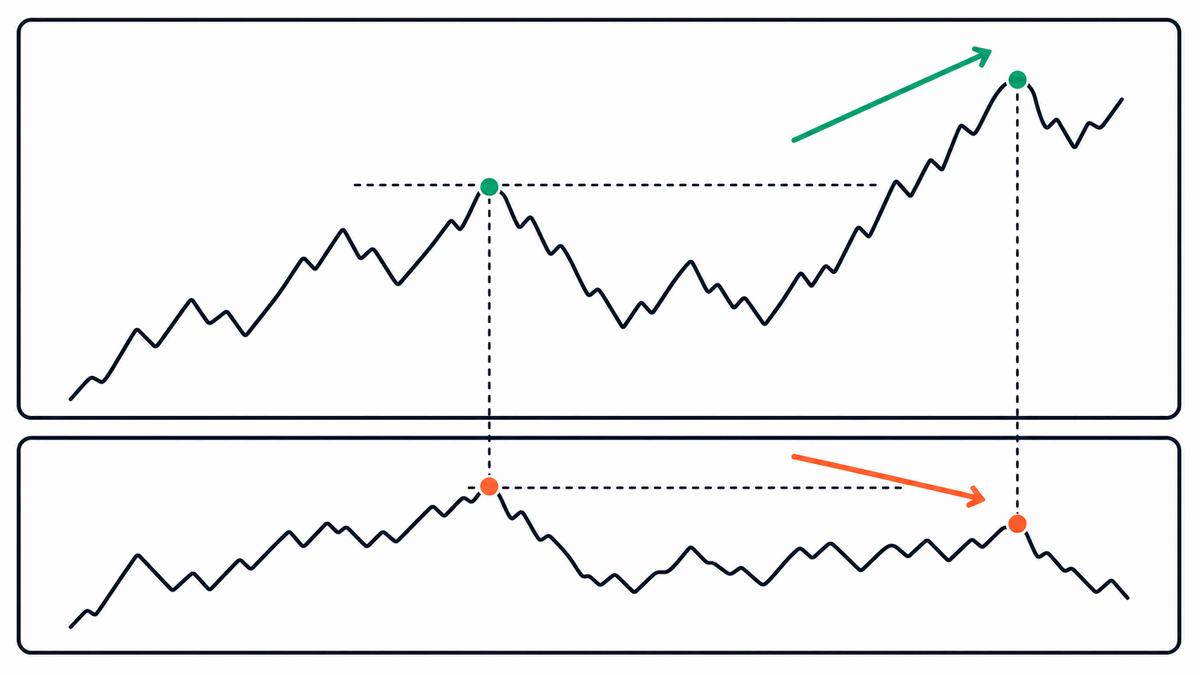

OBV Divergence — Missing Capital at New Price Highs

This occurs when price makes a new high but OBV fails to exceed its prior high. It looks similar to RSI divergence, but the meaning is different. RSI is a normalized price ratio. OBV is cumulative volume. OBV divergence is therefore a clear signal that capital inflow itself is not keeping up with the new high.

This usually appears late in a trend. It is the transition point from Markup to Distribution. When AMZN made a new high at $200 in July 2024, daily OBV was clearly below its prior April OBV high. A 23% correction followed into August. Price made a new high, but the capital behind that high was smaller than at the prior high, and both facts were visible on the same chart.

Do not short immediately just because divergence appears. Enter only when price structure also breaks, such as a close below the prior swing low. OBV divergence signals that the flow is changing, and you enter only once price structure breaks with it.

Where OBV Loses Reliability

Because OBV is calculated from volume, it loses meaning in markets where volume itself is distorted.

OBV on small altcoins is directly exposed to exchange wash trading. In some small alts, self-trading done to earn exchange incentives can make up a large share of 24-hour volume, and OBV treats that fake volume as real capital inflow. For assets whose 24-hour volume is abnormally large relative to market cap, do not trust OBV itself.

Another trap is that OBV assigns the direction of an entire bar based on a single point: the close. Even if buying and selling inside a bar are split 50:50, if the close is slightly above the previous close, the entire bar's volume is classified as buying volume. Because OBV is this simple, it is not a tool for fine detail. It is suited to the big-picture read of accumulation and distribution. Small OBV changes on short timeframes are hard to trust. If you need to see how volume was distributed inside the bar, switch to CVD (Cumulative Volume Delta).

The third issue is gaps. In stocks and futures, when the entire volume of a gap candle is added to or subtracted from OBV, a simple gap can shake the OBV line sharply. That makes it difficult to separate the effect from real accumulation or distribution. For the first few days after an earnings gap, give OBV changes less weight.

Two Alignments That Add Weight to an OBV Pattern

To trust range analysis, two conditions should align.

• How long the range has lasted: Accumulation and distribution phases statistically last at least three weeks. A rising OBV in a one- or two-week range may be random. The longer the range, the more confidence you can place in the OBV shape.
• The significance of the price area: An accumulation range is more reliable when it forms near a major historical support area. An accumulation pattern in empty space may just be a random wave of buying. The same OBV shape carries different weight depending on where it appears.
